Ground investigation in Middlesbrough addresses the variable site conditions shaped by glacial till, alluvial deposits along the Tees, and historic industrial fill. A robust programme must comply with BS 5930 and Eurocode 7, ensuring safe foundation design across the town’s reclaimed and naturally complex terrain. Early-phase data commonly relies on In-Situ such as the [Standard Penetration Test](standard-penetration) to assess relative density and consistency, providing essential parameters for bearing capacity and settlement analysis in these often-challenging superficial soils.
Residential developments on brownfield land, commercial builds near the river corridor, and infrastructure upgrades all demand detailed subsurface models to manage risks from variable ground and potential contamination. Integrating the [Standard Penetration Test](standard-penetration) with complementary geophysics and laboratory testing refines the ground profile, directly informing foundation selection and earthworks specification. A focused investigation strategy, aligned with local authority planning requirements, reduces uncertainty and keeps your Middlesbrough project on programme.
A bearing capacity analysis captures local soil variations by examining shear strength, compressibility, and groundwater regime in one integrated assessment.
Technical details of the service in Middlesbrough
Critical ground factors in Middlesbrough

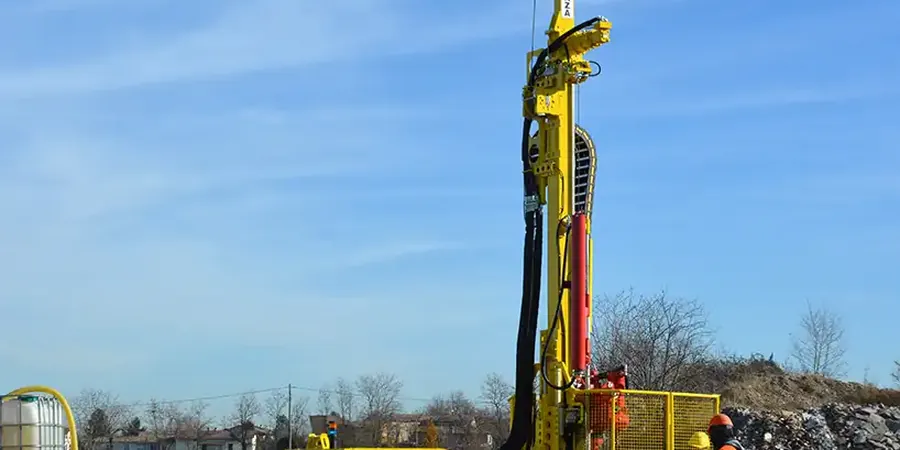

A common sight on Middlesbrough sites is the track-mounted drilling rig, its auger biting into ground that may hide old brick rubble, ash, or abandoned services from the Victorian era. The risk of bearing capacity failure here is not just theoretical. In 2013 a small warehouse extension near the dock estate settled 40 mm after construction because the design assumed uniform made ground. The bearing capacity analysis had been skipped. The fix involved underpinning, delays, and a legal dispute. Our approach is different. We deploy the rig to recover undisturbed samples from every distinct stratum, run quick field checks with a pocket penetrometer for immediate readings, and log groundwater strikes in real time. That data feeds directly into the bearing capacity calculation, giving the structural engineer numbers he can trust for the final footing design.
Our services
We offer three complementary services for bearing capacity analysis in Middlesbrough, each designed for a different project scale and ground condition.
Prescriptive Bearing Capacity (Residential)

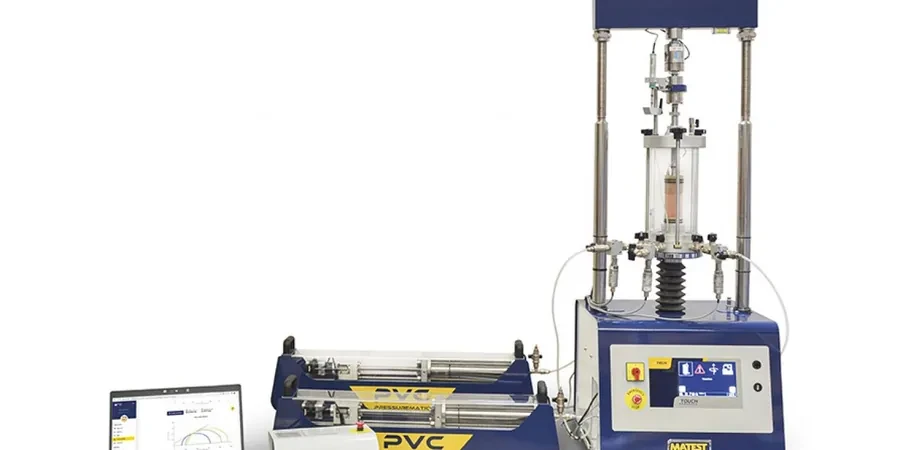

For houses, garages, and small extensions. We drill one or two boreholes per plot, run SPT and laboratory triaxial tests, and provide an allowable bearing capacity value with a clear factor of safety. Typical scope: 2 boreholes to 6 m depth, 3 SPT tests per borehole, one triaxial set per stratum. Report delivered within 7 working days.
Analytical Bearing Capacity (Commercial & Industrial)
For warehouses, office blocks, and light industrial units. We use a combination of boreholes, pressuremeter tests, and to derive bearing capacity under serviceability and ultimate limit states. The report includes settlement predictions for 25, 50, and 100 kPa load increments. Suitable for sites with variable made ground or soft alluvium.
Bearing Capacity for Piled Foundations
When shallow footings are not feasible (deep soft soils, high groundwater), we assess end-bearing and shaft friction for piles. The analysis uses SPT N-values and laboratory shear strength parameters to recommend pile type, length, and working load. We also provide negative skin friction estimates for sites with consolidating fill.
In Middlesbrough, a thorough ground investigation is the critical first step for any construction or civil engineering project, providing essential data on subsurface conditions. The local geology is dominated by glacial till overlying the Mercia Mudstone Group, with alluvial deposits along the River Tees corridor, creating variable ground conditions that demand careful assessment. Our investigations address these complexities, identifying potential hazards such as soft clays, buried obstructions from the area’s industrial past, and shallow groundwater, all in accordance with BS 5930:2015+A1:2020, the UK code of practice for ground investigations, and Eurocode 7.
Our field methodologies employ a combination of intrusive and in‑situ techniques to build a robust geotechnical model. We routinely carry out cable percussive and rotary drilling to recover samples for laboratory testing, complemented by the Standard Penetration Test (SPT) to measure the density and consistency of granular and cohesive soils. In cohesive strata, field vane shear testing (VST) provides undrained shear strength profiles with minimal disturbance. These in‑situ tests are executed following the procedural standards of BS EN ISO 22476, ensuring data repeatability and direct applicability to foundation design in the Teesside basin.
Projects across Middlesbrough regularly require targeted investigation strategies. For the redevelopment of brownfield sites in Middlehaven, we integrate in‑situ testing such as plate load tests to evaluate bearing capacity on made ground, while compaction quality on earthworks for the South Tees Development Corporation area is verified through the field density test (sand cone method). Residential schemes on the fringes of the North York Moors demand careful characterisation of variable glacial tills, where our logging to BS 5930 and subsequent soil classification to USCS and AASHTO standards informs cut‑and‑fill assessments and foundation selection.
A typical Middlesbrough investigation follows a phased approach: desk study and walkover, intrusive fieldwork with sampling and in‑situ tests, accredited laboratory analysis, and interpretive reporting. Deliverables include AGS 4.0 digital data, factual and interpretative reports, and clear geotechnical parameters for design. By combining local geological knowledge with rigorous UK standards, we deliver a ground model that reduces uncertainty, controls project risk, and provides the reliable basis needed for safe, cost‑effective engineering decisions.
